Parent Layer: Transportation

Name: Pedestrian Facility

Display Field: STREETNAME

Type: Feature Layer

Geometry Type: esriGeometryPolyline

Description: A walkway for pedestrians classified as sidewalk, cut through or multi use path. Sidewalks are found on one or both sides of a road, typically constructed from asphalt or concrete. Pedestrian facilities play a key role in the larger transportation network shared by roads, trails, bicycle lanes, bridges, and stairways.

Copyright Text: The Corporation of the District of Saanich, IT Dept GIS, Engineering Dept, Transportation & Development

Default Visibility: false

MaxRecordCount: 3000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0.0

Max Scale: 0.0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 466576.86370625
YMin: 5364521.7327
XMax: 479783.6596
YMax: 5376282.75215
Spatial Reference: 3157  (3157)  LatestVCSWkid(0)

Drawing Info:

Renderer:
Unique Value Renderer:
Field 1: TYPE
Field 2: N/A
Field 3: N/A
Field Delimiter: ,
Default Symbol:
N/A
Default Label: N/A
UniqueValueInfos:
• Value: 1
  Label: Sidewalk
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [255, 115, 223, 255]
  Width: 2
• Value: 3
  Label: Cut Through
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [0, 132, 168, 255]
  Width: 2
• Value: 4
  Label: Multi Use Path
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [194, 158, 215, 255]
  Width: 2
• Value: 2
  Label: Pedestrian Walkway
  Description: N/A
  Symbol:
  Style: esriSLSSolid
  Color: [252, 199, 214, 255]
  Width: 2
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: true

HasM: true

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: TYPE

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• TYPE ( type: esriFieldTypeSmallInteger, alias: Type )
• ADMINSTRATIVEAREA ( type: esriFieldTypeString, alias: Administrative Area, length: 4 , Coded Values: [BCH: BC Hydro] , [CRD: Capital Regional District] , [CS: District of Central Saanich] , ...11 more... )
• ASSETID ( type: esriFieldTypeString, alias: Asset ID, length: 12 )
• FACILITYID ( type: esriFieldTypeString, alias: Facility ID, length: 12 )
• INSTALLYEAR ( type: esriFieldTypeSmallInteger, alias: Install Year )
• SURFACE ( type: esriFieldTypeString, alias: Surface, length: 5 , Coded Values: [CONC: Concrete] , [ASPH: Asphalt] , [GRAV: Gravel] , ...1 more... )
• SEPARATED ( type: esriFieldTypeString, alias: Separated, length: 3 , Coded Values: [Yes: Yes] , [No: No] , [Unk: Unknown] )
• WIDTH ( type: esriFieldTypeDouble, alias: Average Width (m) )
• STREETNAME ( type: esriFieldTypeString, alias: Street Name, length: 40 )
• STREETSIDE ( type: esriFieldTypeString, alias: Street Side, length: 16 , Coded Values: [N: N] , [S: S] , [E: E] , ...1 more... )
• FROMSTREET ( type: esriFieldTypeString, alias: From Street, length: 40 )
• TOSTREET ( type: esriFieldTypeString, alias: To Street, length: 40 )
• BLOCK ( type: esriFieldTypeString, alias: Block, length: 40 )
• BORDER ( type: esriFieldTypeString, alias: Border, length: 40 )
• METHODCAPTURE ( type: esriFieldTypeString, alias: Method Capture, length: 5 , Coded Values: [ASBD: Asbuilt] , [ATIF: Archived Tif] , [DESN: Design Drawing] , ...38 more... )
• DESIGNNUMBER ( type: esriFieldTypeString, alias: Design Number, length: 30 )
• CREATOR ( type: esriFieldTypeString, alias: Creator, length: 30 )
• CREATEDATE ( type: esriFieldTypeDate, alias: Create Date, length: 8 )
• LASTEDITOR ( type: esriFieldTypeString, alias: Last Editor, length: 30 )
• LASTEDITDATE ( type: esriFieldTypeDate, alias: Last Edit Date, length: 8 )
• COMMENTS ( type: esriFieldTypeString, alias: Comments, length: 150 )
• LEGACYFACILITYID ( type: esriFieldTypeString, alias: Legacy Facility ID, length: 12 )
• GLOBALID ( type: esriFieldTypeGlobalID, alias: GLOBALID, length: 38 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• SHAPE.LEN ( type: esriFieldTypeDouble, alias: SHAPE.LEN )

Types:

ID: 1
Name: Sidewalk
Domains:
• ADMINSTRATIVEAREA:
  Inherited
• SURFACE:
  Inherited
• SEPARATED:
  Inherited
• STREETSIDE:
  Inherited
• METHODCAPTURE:
  Inherited

---

ID: 2
Name: Pedestrian Walkway
Domains:
• ADMINSTRATIVEAREA:
  Inherited
• SURFACE:
  Inherited
• SEPARATED:
  Inherited
• STREETSIDE:
  Inherited
• METHODCAPTURE:
  Inherited

---

ID: 3
Name: Cut Through
Domains:
• ADMINSTRATIVEAREA:
  Inherited
• SURFACE:
  Inherited
• SEPARATED:
  Inherited
• STREETSIDE:
  Inherited
• METHODCAPTURE:
  Inherited

---

ID: 4
Name: Multi Use Path
Domains:
• ADMINSTRATIVEAREA:
  Inherited
• SURFACE:
  Inherited
• SEPARATED:
  Inherited
• STREETSIDE:
  Inherited
• METHODCAPTURE:
  Inherited

---

Supported Operations:   Query   Query Attachments   Query Analytic   Generate Renderer   Return Updates

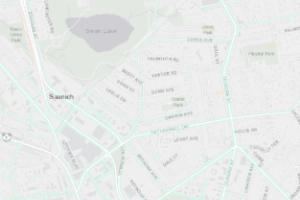

  Iteminfo   Thumbnail   Metadata
